Herschel iQ - R1 Receiver

Recommended Controllers

  • Herschel iQ T1 - Single Zone Control
    Herschel iQ Single Zone heater control pack
  • Herschel iQ WH1 - Group Controller
    Herschel iQ WH1 Central Control Unit

Herschel iQ R1 Wireless Receiver


Next Day Delivery
DIY Friendly
Reduce heating Cost
Highly energy efficient
1 Warranty
Zero maintenance

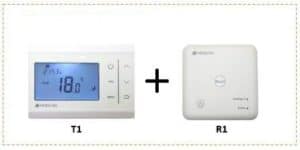

Note: Purchase R1 receivers if you wish to control additional heaters from your T1 thermostat (the iQ Single zone heater pack comprises one Herschel iQ T1 Wireless Thermostat and one iQ R1 Wireless Receiver).

The Herschel iQ R1 wireless receiver is designed to control Herschel Infrared when used in conjuntion with the T1 Wireless Thermostat or WH1 Central Control Unit.

The R1 incorporates an internal temperature sensor, a 1 hour Boost function and Herschel’s latest open-window detection function.

An R1 can control up to 2.3kW of Infrared heaters (10 amps) on a 230 volt circuit or 1.2kW (10 amps) on 120 volts.

Additional R1 Wireless can be added to the same T1 or WH1 controller to expand your control solution to additional zones. They will all receive the same instruction from a T1 and will all be individually controllable using a WH1.

An R1 Receiver paired with a T1 Thermostat can be subsequently re-paired with a WH1 controller.

Other Features:

  • 10 Amp maximum load;
  • Radio Frequency 433Mhz;
  • 200m wireless range (if unobstructed);
  • 12 month warranty*;
  • Herschel Infrared heaters together with the iQ Single Zone starter pack or WH1 Central Control Unit are fully compliant with EC Directive 2009/125/EC for Ecodesign of local space heaters.


Herschel iQ Configuration guide. (Describes control options available from single rooms through to whole building control.)

R1 Instructions.

*Must be used with Herschel Heaters to qualify.

Herschel iQ certification
