Vulcan 9 -12 kW Warehouse Heater
FROM $3,999.00
Herschel Vulcan Industrial Heater
Herschel Vulcan Industrial Heater Herschel Vulcan 12kW Herschel Vulcan 4kW Heater heating a workshop Herschel Vulcan 4kW Heater heating a metal pressing workarea Herschel Vulcan 4kW Heater in an industrial unit Herschel Vulcan 9-12kW rear view Herschel Vulcan 9 & 12 kW Industrial heater dimensions Vulcan 9 -12kW Workshop heater wiring schematic

Special Order Item

2 year warranty

Reduce heating Cost

Energy efficient

Professional Install

Low Maintenance

Vulcan 9 -12 kW Warehouse Heater

FROM $3,999.00

Key Features:

  • Wall or ceiling mount
  • High power Quartz Tungsten lamps
  • Heats large areas
  • Quality European construction
  • Long life components
  • Professional installation required
  • Requires 3 Phase 380 – 415V



50 x 50cm

Contact Herschel





50 x 50cm

Contact Herschel



Find Out More

  • Description

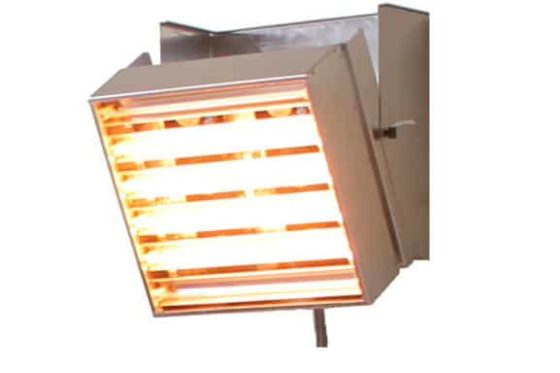

    Herschel’s Vulcan 9 – 12kW Infrared workshop heaters are designed to heat large spaces like workshops and warehouses. They offer considerable advantages to operators seeking alternatives to gas or convection-based heating systems:

    • Vulcan provides heat exactly where and when you want it. Used to heat specific zones within a large space;
    • Pollution free – Vulcan does not emit any fumes and does not require additional ventilation;
    • Powerful – designed for industrial use;
    • Covers large areas from high installation heights

    Effective, transmissive Radiant heat is produced by 6 x Quartz – Tungsten (Short/Medium IR: 1.6-1.9µm) lamps. The Vulcan is also unique in being equipped with fans which serve two purposes of:

    1. Significantly enhancing heat distribution (in the direction the heating is pointing)
    2. Considerably extending the life of the lamps by keeping them cool, without affecting their radiance.

    The Vulcan 9 – 12 kW infrared workshop heater is ideal for industrial units wishing to avoid using fully convection-based or gas-based blower systems.

    Always refer to Herschel for an accurate assessment of your heating requirements.


    The Vulcan can be installed pointing vertically downwards from heights of 3.5 – 6m above the ground.

    The Vulcan can also be wall-mounted angled downwards and an optional bracket can be purchased for this purpose.

    380 – 415V 3-phase power should be used to power the Vulcan 9 – 12kW Warehouse Heater and installation must be performed by a commercial electrician. Do not exceed 415V as this will produce 254 Volts per phase and will shorten the operating life of the lamps.

    The Vulcan 9 – 12kW Infrared Workshop Heater has no built-in controls. Please discuss control options with Herschel during the estimating phase of your heating project.

    The inbuilt fans have their own circuit and must be operational at all times that the lamps are operational and must continue to operate for at least a minute after the lamps are switched off. Failure to observe this requirement will invalidate the warranty.

    Vulcan 9 – 12kW Infrared Workshop Heaters are special order items. Purchase price includes the first set of 6 lamps.

  • Technical

    Technical Specifications

    Dimensions: 500 x 500 x 150mm

    Element: 6 x 1.5 or 2kW Quartz-Tungsten Lamps producing 9 – 12kW or 30,700 – 41,000 BTU/hr

    Cooling Fans: 6

    Useful Wavelength Range: 1.6-1.9µm

    Body: Aluminium body

    Cable length: 5m

    Voltage: 380 – 415 V, 50 Hz

    Guarantee: 2 years, excluding Quartz lamps.

    Operating conditions within warehouses vary considerably. Contact Herschel for heated area estimate.

    Quality & Safety

    Guarantee: 24 months. Excludes Quartz Lamps.

    This unit is not suitable for household or similar use.
